Python:Plotly .Mesh3d()

.Mesh3d() is a method in Plotly’s graph_objects module that generates 3D mesh plots by defining vertices and connecting them with faces (typically triangles).

Syntax

plotly.graph_objects.Mesh3d( x=None, y=None, z=None, i=None, j=None, k=None, color=None, opacity=None, ...)

• x, y, z: Coordinates of the vertices in 3D space (arrays or lists).
• i, j, k: Indices that define the triangular faces, where each set of three indices corresponds to a triangle formed by the vertices defined by x, y, and z.
• Color: The color of the mesh, which can be a single color or an array of colors for each face.
• opacity: Controls the transparency of the mesh, ranging from 0 (fully transparent) to 1 (fully opaque).

Note: There are many additional, optional parameters that are not listed here, as indicated by the ellipsis (...) in the syntax.

Example 1

This code displays a 3D mesh plot by defining the triangles that connect the vertices:

import plotly.graph_objects as go

# Coordinates of vertices.
x = [0, 1, 2, 0]
y = [0, 0, 1, 2]
z = [0, 2, 0, 1]

# Indices of vertices forming triangles.
i = [0, 0, 0, 1]
j = [1, 2, 3, 2]
k = [2, 3, 1, 3]

# Create Mesh3d object.
mesh = go.Mesh3d(
    x=x,
    y=y,
    z=z,
    i=i,
    j=j,
    k=k,
    color='lightblue',
    opacity=0.5
)

# Generate figure.
fig = go.Figure(data=[mesh])

# Display plot.
fig.show()

Copy to clipboard
Copy to clipboard

If triangle indices (i, j, k) are not specified, the mesh will be automatically generated using algorithms like Delaunay triangulation.

Delaunay triangulation is a method for dividing a set of points into non-overlapping triangles, ensuring that no points lie inside the circumcircle of any triangle.

The alphahull parameter can be used to control the mesh generation process without the indices:

• alphahull = -1: Uses Delaunay triangulation.
• alphahull = 0: Computes the convex hull of the point set.
• alphahull > 0: Uses the alpha shape algorithm with the specified alpha value.

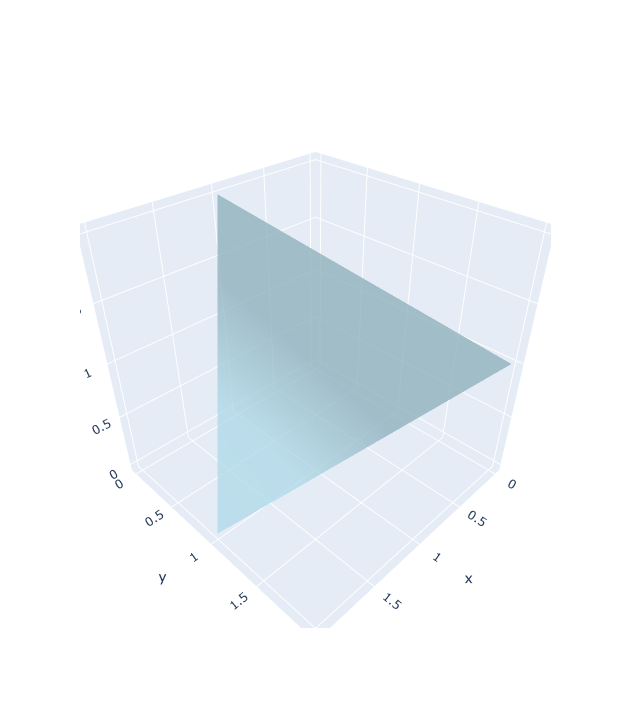

This example results in the following output:

Example 2

The dataset information can be used to create a 3D mesh plot, as demonstrated in the example below, which visualizes a sphere using vertex and face data from a CSV file:

import plotly.graph_objects as go
import pandas as pd

# Load dataset.
df = pd.read_csv('https://raw.githubusercontent.com/plotly/datasets/master/ply/sphere-ply.csv')

# Create mesh plot.
fig = go.Figure(data=go.Mesh3d(
    x=df['x'],
    y=df['y'],
    z=df['z'],
    i=df['i'],
    j=df['j'],
    k=df['k'],
    facecolor=df['facecolor']
))

fig.show()

Copy to clipboard
Copy to clipboard

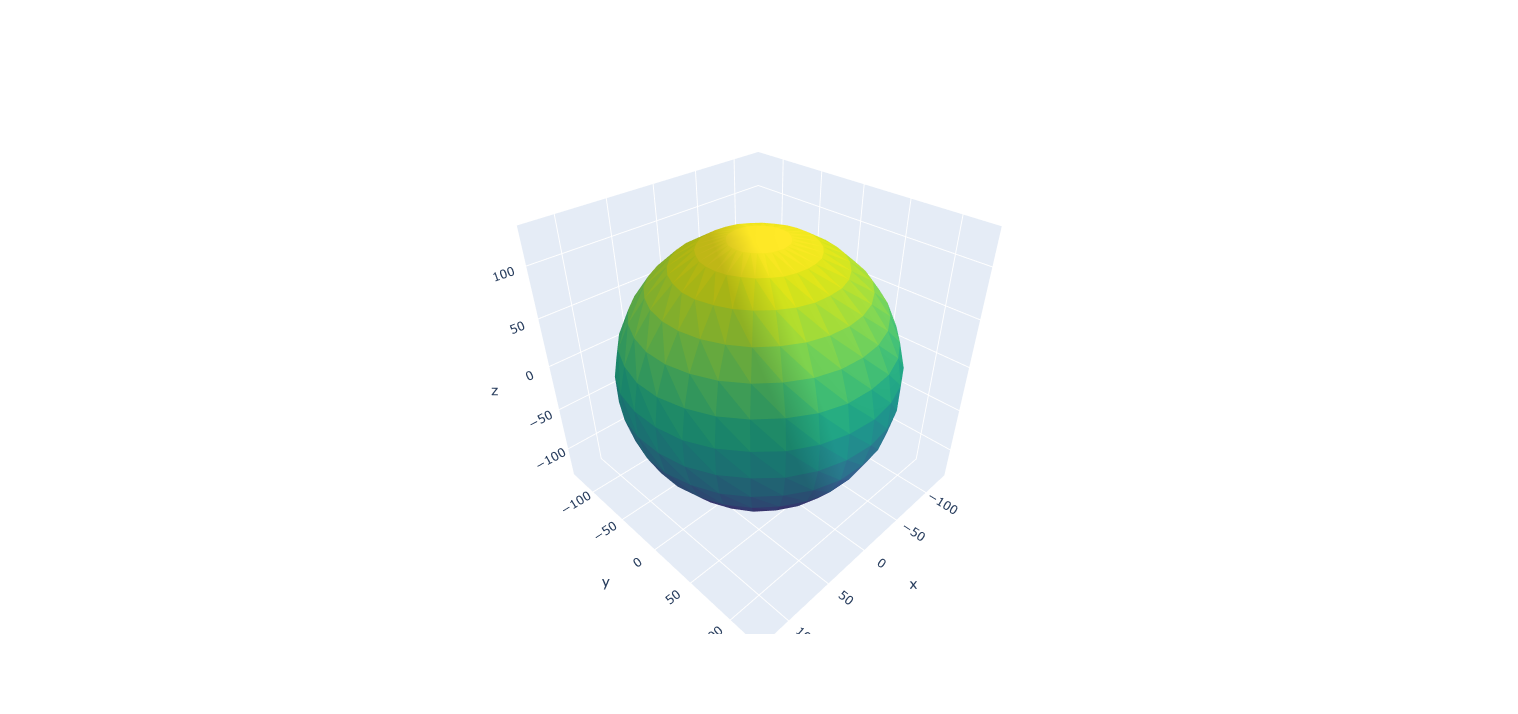

This example results in the following output:
